Universal & Mechanical Testing Machines

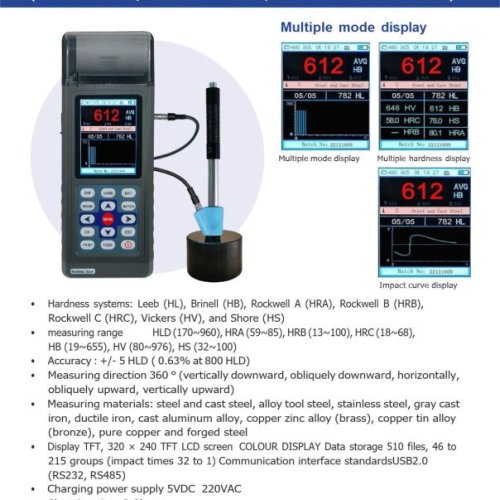

● Hardness systems: Leeb (HL), Brinell (HB), Rockwell A (HRA), Rockwell B (HRB), Rockwell C (HRC), Vickers (HV), and Shore (HS) ● Measuring range HLD (170~960), HRA (59~85), HRB (13~100), HRC (18~68), HB (19~655), HV (80~976), HS (32~100) ● Accuracy: +/- 5 HLD (0.63% at 800 HLD) ● Measuring direction 360 ° (vertically downward, obliquely downward, horizontally, obliquely upward, vertically upward) ● Measuring materials: steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile iron, cast aluminum alloy, copper zinc alloy (brass), copper tin alloy (bronze), pure copper and forged steel ● Display TFT, 320 × 240 TFT LCD screen COLOUR DISPLAY Data storage 510 files, 46 to 215 groups (impact times 32 to 1) Communication interface standards USB2.0 (RS232, RS485) ● Charging power supply 5VDC220VAC ● Charging time 2-3hour ● Battery 7.4VLi2000mAhBattery ● Ambient temperature 040 ● Storage temperature -2570 ● The continuous working time is about 20 hours, and the standby time is 80 hours; ● Standard: ASTM A956, DIN 50156-1, GB/ T-17294 Functional features: ● Multiple language switching between Simplified/Traditional English, and German, with menu based operation. ● Adopt a proprietary dual bin dustproof design to ensure that the main engine bin is not affected by dust; ● Type-c USB and RS485 communication interfaces can easily connect PCs, industrial control computers, or PLCs; ● The main interface displays two hardness scales. ● There are three modes switching on the main interface (histogram mode, full hardness mode, and curve mode). ● The production batch number setting function allows for self-numbering of measured workpieces, facilitating statistical recording. ● Browse for any hardness scale conversion of status measurement data, which is convenient and fast. ● It can be equipped with 7 different impact devices, which do not require recalibration during replacement and can automatically identify the type of impact device. ● Support the measurement of multiple hardness systems and three strength values. ● Built-in domestic and foreign hardness conversion tables to meet the different needs of customers. ● It can store 510 files, with 46 to 215 groups of single measurement values, average values, measurement dates, impact directions, times, materials, hardness system, and other information for each file (32 to 1 impact times). ● The upper and lower limits of hardness values can be set in advance, and automatic alarm will be given when the limit is exceeded, facilitating the needs of users for batch testing. ● Indication software calibration function. ● Built-in high-performance lithium battery and charging control circuit, with a battery capacity of 2000mA. ● Computer software can be equipped to support data query, storage, statistics, histogram display, and other functions, and stored in Excel format.   Standard configuration: ● Instrument with Built in MINI Printer – 1 ● D-type impact device – 1 ● Small support ring – 1 ● Nylon brush (I) – 1 ● High value Leeb hardness block – 1 ● Charger – 1 ● Software (By Email)   Options: ● Various special-shaped impact devices.   Main technical indicators: Indication error and repeatability. ● D-Probe: – Model No. ITI-D Universal standard unit. Will handle the majority of hardness testing applications. ● D+15 -Probe: – Model No. ITI-D+15 Very narrow contact area with a set back measurement coil. This device is used to measure hardness in grooves and recessed surfaces. ● DL -Probe: – Model No ITI-DL This model features a needle front section with a diameter of 4mm and a length of 50mm. It is suitable for testing in extremely confined spaces, the base of grooves and on special components such as as gear wheels. For use on steel and cast steel only! ● DC-Probe: – Model No. ITI-DC Very short impact device for those confined areas, i.e. inside bores for internal measurements. Conforms to the D measuring range. ● G-Probe: – Model No. ITI-G This device has an enlarged test tip, and an

Features:

• Loading accuracy as high as ±1%.

• Variable straining speeds to suit a wide range of materials.

• Printer and PC graph outputs to study material behavior.

• Motor-driven threaded columns for effortless and quick lower crosshead adjustment, simplifying specimen setup.

• Clear digital readouts for easy result interpretation.

• Wide range of standard and optional accessories, including load stabilizer.

• Easy switching between plain, threaded, and screwed specimens.

• Large clearance between columns for testing standard specimens and structures.

• Simple, user-friendly controls.

• Robust, rigid straining frame for durability.

• Safety devices for secure operation.

• Fully enclosed and protected pressure transducer.

• RS-232 serial port for transferring data to computer for analysis, storage, and evaluation.

• Manual control and release valve operation.

• Load capacities available: 100 kN, 200 kN, 400 kN, 600 kN, 1000 kN, 1200 kN, 1500 kN, and 2000 kN.

Key Features:

• Microprocessor-based panel with advanced technology.

• Front panel with membrane-type keyboard and numeric keys for machine operation and data entry.

• 7-segment digital display.

• Input of test parameters including speed, rupture %, peak load, preload, modulus, and specimen data.

• Storage capacity for 20 input data sets and 50 results.

• Retains data and results even during power outages.

Microprocessor-based control panel incorporating state-of-the-art technology, featuring:

• Front panel membrane-type keyboard with numeric keys for machine operation and data entry.

• Clear 7-segment display for real-time readouts.

• Data entry capability for key test parameters, including:

  • Speeds

  • Rupture percentage

  • Peak load

  • Pre-load

  • Modulus data

  • Test data

  • Specimen data

• Storage capacity for 20 input data sets and 50 test results.

• Data and results are retained even during power interruptions.

Features:

• Open-type crosshead for easy specimen loading.

• Hydraulic wedge action grips for strong and reliable clamping.

• Long test stroke with dual test space for versatility.

• Loading accuracy as high as ±1%.

• Straining at variable speeds to suit a wide range of materials.

• Printer and PC graphs for analyzing material behavior.

• Motor-driven threaded columns for quick and effortless lower crosshead adjustment—simplifies specimen setup.

• Easy-to-read digital readouts for accurate monitoring.

• Wide range of standard and special accessories, including load stabilizer.

• Quick interchangeability between plain, threaded, and screwed specimens.

• Large clearance between columns for testing standard samples and large structural components.

• Simple control interface for smooth operation.

• Rigid and robust straining frame for long-lasting durability.

• Integrated safety devices ensure operator safety.

• Fully enclosed and protected pressure transducer.

• RS-232 serial port for data transfer to a computer for analysis, evaluation, and storage.

• Manual control and release valve operation for flexibility.

• Available Load Capacities: 100 kN, 200 kN, 400 kN, 600 kN, 1000 kN, and 1200 kN.

Microprocessor-based panel built with advanced technology offering:

• Front panel membrane-type keyboard for machine operation and numeric data entry.

• Clear 7-segment digital display.

• Data entry for test parameters such as speed, rupture %, peak load, pre-load, modulus data, test data, and specimen information.

• Storage for 20 input data sets and 50 test results.

• Non-volatile memory retains data and results during power loss.

Features:

• Loading accuracy as high as ±1%.

• Servo-controlled motorized valve supporting multiple control modes:

  • Standard manual control

  • Potentiometric control

  • Load rate control

  • Elongation rate control

  • Load hold mode

  • Auto start

  • Initial valve open start

• Variable straining speeds to accommodate a wide range of materials.

• Printer and PC graph support for material behavior analysis.

• Motor-driven threaded columns for effortless lower crosshead adjustment and quick specimen fixing.

• Digital readouts for simple and accurate result interpretation.

• Wide range of standard and special accessories.

• Easy switching between plain, threaded, and screwed specimens.

• Large clearance between columns allows testing of both standard specimens and structural components.

• Simple, user-friendly controls.

• Extremely rigid straining frame construction for durability.

• Integrated safety devices for secure operation.

• Fully enclosed and protected pressure transducer.

• RS-232 serial port for PC-based machine control.

• Available Load Capacities: 100 kN, 200 kN, 400 kN, 600 kN, and 1000 kN.

• Utilizes 8085 microprocessor for core UTM operations and an 8-bit dedicated microcontroller for closed-loop and servo control.

• Equipped with a parallel printer port.

• RS-232C serial port for PC interface.

• 2-line, 8-digit 7-segment display and membrane keyboard for data entry.

• Storage for 20 data sets and 50 test results.

The UTES-HGFL Electronic Universal Testing Machine is a high-quality metal machine designed for material testing. Originating from various countries, it comes in grey color and is packaged in a cardboard box. With a digital display and electric power source, it offers a capacity of up to 100 KN. Its weight varies based on capacity, making it a versatile choice for testing applications.

Computerized Touch Screen Universal Testing Machine – Model: UTES-HGFL-TS

Features:

• Open-type crosshead for convenient specimen placement.

• Hydraulic wedge action grips for firm and reliable holding.

• Long test stroke and ample test space for diverse applications.

• Loading accuracy as high as ±1%.

• Variable-speed straining for testing a wide range of materials.

• Servo-controlled motorized valve with multiple control modes:

  • Standard manual control

  • Load rate control

  • Elongation rate control

  • Load hold mode

  • Auto start

  • Initial valve open start

• Windows-based touch screen control panel with printer connectivity.

• Motor-driven threaded columns for effortless adjustment of the lower crosshead.

• Wide range of standard and special accessories, including load stabilizer.

• Easy interchange between plain, threaded, and screwed specimens.

• Large clearance between columns allows testing of standard specimens and larger structures.

• Simple and intuitive controls for smooth operation.

• Rigid and robust straining frame construction for long-term durability.

• Integrated safety devices ensure secure operation.

• Fully enclosed and protected pressure transducer.

• Available Load Capacities: 100 kN, 200 kN, 400 kN, 600 kN, and 1000 kN.

Computerized Touch Screen Control Panel – Series: UTS 2018-TS

Microcontroller-based panel with advanced features, including:

• Front panel touch screen display for user-friendly operation.

• Data entry for key test parameters such as pre-load, rupture %, safe load, and specimen details.

• Real-time graph of load vs. displacement shown directly on the screen.

• USB printer port for direct printing of test results and graphs.

• Export functionality for results/data in PDF, Excel, and CSV formats.

• Windows-based software includes:

  • Online graph display on PC

  • Data analysis and statistical tools

  • Point tracing and superimposing of multiple graphs

  • Zoom and compare features for detailed study

Features:

• Loading accuracy as high as ±1%.

• Servo-controlled motorized valve with multiple control modes:

  • Standard manual control

  • Load rate control

  • Elongation rate control

  • Load hold mode

  • Auto start

  • Initial valve open start

• Variable-speed straining to accommodate various materials.

• Windows-based touch screen control panel with printer connectivity.

• Motor-driven threaded columns for effortless adjustment of the lower crosshead, enabling quick specimen setup.

• Digital readouts for simple and accurate result viewing.

• Wide range of standard and optional accessories.

• Easy conversion between plain, threaded, and screwed specimens.

• Large effective clearance between columns allows testing of standard specimens and structural components.

• Intuitive controls for user-friendly operation.

• Extremely rigid and durable straining frame design.

• Fully enclosed and protected pressure transducer for enhanced safety and performance.

• Available Load Capacities: 100 kN, 200 kN, 400 kN, 600 kN, and 1000 kN.

Microcontroller-based panel built with advanced technology offering:

• Front panel touch screen display for seamless user interaction.

• Entry of test parameters including pre-load, rupture %, safe load, and specimen data.

• Real-time graph display of Load vs. Displacement on the screen.

• USB printer port for direct graph and result printouts.

• Data export capability in PDF, Excel, and CSV formats.

• Windows-based software features include:

  • Online graph visualization on PC

  • Data analysis tools and statistics

  • Point tracing and superimposing graphs for comparison

  • Zoom and evaluate specific graph sections

Features :

• Loading Accuracy as high as + 1%
• Suitable at variable speeds to suit a wide range of materials.
• Continuous roll autographic recorder supplied as standard to enable study of the behavior of materials.
• Motor driven threaded columns for quick effortless adjustment of lower cross-head-to facilitate rapid fixing of test specimen.
• High reading accuracy due to large size and design of dial.
• Wide range of standard and special accessories, including load stabilizer.
• Easy change from plain to threaded and screwed specimens.
• Large effective clearance between columns enables testing of standards specimens as well as structures.
• Simple controls for easy of operation.
• Robust staining frame of an extremely rigid construction.
• Safe operation ensured be means of safety devices.
• Fully enclosed and protected pendulum.
• Load Capacity : 100 kN, 200kN, 400kN, 600kN, 1000kN.

• Loading accuracy as high as ±1%.

• Operates at variable speeds to accommodate a wide range of materials.

• Continuous roll autographic recorder provided as standard to analyze material behavior.

• Motor-driven threaded columns for quick, effortless adjustment of the lower crosshead—enables fast specimen setup.

• High reading accuracy due to large, well-designed dial.

• Wide range of standard and special accessories, including:

  • Servo control mode

  • Hydraulic grip front loading

  • Touch screen control panel

  • Load stabilizer

• Easy transition between plain, threaded, and screwed specimens.

• Large effective clearance between columns allows testing of standard specimens as well as structural components.

• Simple, user-friendly controls for smooth operation.

• Robust, rigid straining frame construction ensures long-term durability.

• Safety devices provided to ensure secure testing procedures.

• Fully enclosed and protected pendulum mechanism.

• Directional control valve enables switching from analog to digital testing modes.

• RS-232 serial port for data transfer to a computer for analysis, storage, and evaluation.

• Printer and PC graph support to study material performance.

• Digital readouts simplify data interpretation.

• Available Load Capacities: 100 kN, 200 kN, 400 kN, 600 kN, 1000 kN.

• Open-type crosshead design.

• Hydraulic wedge action grips for secure specimen holding.

• Long test stroke and spacious test area for versatility.

• Loading accuracy as high as ±1%.

• Operates at variable speeds to suit a wide range of materials.

• Continuous roll autographic recorder provided as standard for material behavior analysis.

• Motor-driven threaded columns for quick and effortless adjustment of the lower crosshead—facilitates rapid specimen fixing.

• High reading accuracy due to large-sized and precisely designed dial.

• Wide range of standard and special accessories, including load stabilizer.

• Easy conversion between plain, threaded, and screwed specimens.

• Large clearance between columns allows testing of standard specimens and large structures.

• Simple and intuitive controls for smooth operation.

• Robust straining frame with extremely rigid construction.

• Safety devices ensure safe operation.

• Fully enclosed and protected pendulum mechanism.

• Available Load Capacities: 100 kN, 200 kN, 400 kN, 600 kN, and 1000 kN.
